Products Description

Features:

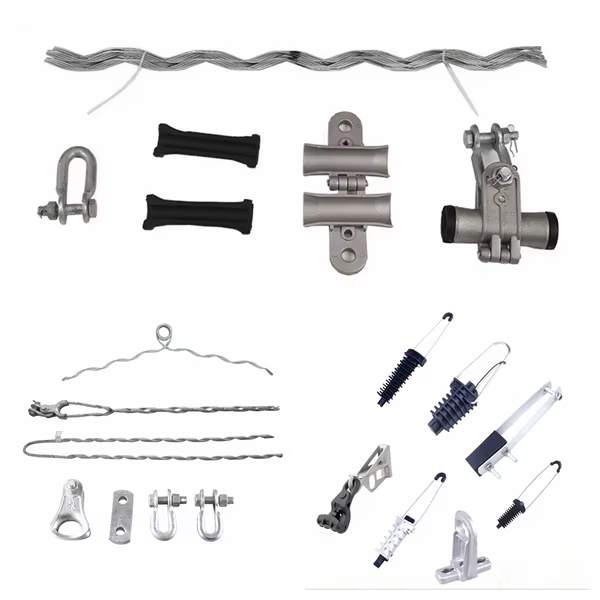

Housing

It is made of cast aluminum alloy, which is stable, better anticorrosive in aero and mechanical performance.

Rubber Insert

It is made of high-class rubber, compounded for resistance to ozone and chemical, weathering extreme high and low temperature variations and compression set.

Bolt, Spring Washer, Flat Washer, Nut

Hot dip galvanized standard.

Splint Pin

Standard part of Electric Power.

Inner Preformed Rods

According to the mechanical performance and chemical composition to custom-made the aluminum alloy wire, with high tensile strength, hardness strength and excellent elasticity and strong rust resistance, it can be used for a long time in the bad weather condition.

Outer Preformed Rods

The same to Inner Preformed Rods.

Connection Hardware

Shackle, U-bolt, UB Clevis, ZH Clevis are the standard parts of Electric Power.

Type	Dia. of Cable(mm)	Available Span(m)
ACL 300/0940	8.8-9.4	200-300
ACL 300/1010	9.5-10.1	200-300
ACL 300/1080	10.2-10.8	200-300
ACL 300/1150	10.9-11.5	200-300
ACL 300/1220	11.6-12.2	200-300
ACL 300/1290	12.3-12.9	200-300
ACL 300/1360	13.0-13.6	200-300
ACL 400/1010	9.5-10.1	300-400
ACL 400/1080	10.2-10.8	300-400
ACL 400/1150	10.9-11.5	300-400
ACL 400/1220	11.6-12.2	300-400
ACL 400/1290	12.3-12.9	300-400
ACL 400/1360	13.0-13.6	300-400
ACL 400/1430	13.7-14.3	300-400

Company Profile

Qitian

Presenting the brand new Adjustable Aluminum Suspension Clamp from Qitian – the clear answer for any telecommunication business that values simplicity of installation, flexibility, and dependability.

The clamp was made to provide installation is straightforward for both ADSS and OPGW dietary fiber optic cables. No more struggling with complicated installation methods or employing specialists being expensive get the job done. The clamp is user-friendly and straightforward, rendering it well suited for any telecommunications group.

The Adjustable Aluminum Suspension Clamp from Qitian consists of the merchandise quality materials which are of the highest, including high-strength aluminum alloy, which ensures sturdiness, resistance to weather corrosion and bending strength. This product is perfect for long-distance fiber transmission optic and cable construction tasks.

The clamp's multipurpose design can also be one among its many attractive features, as it can conform to suspension of different kinds as a result of its adjustable device. This will make it perfect for various versatile applications being dead-end.

Qitian's Adjustable Aluminum Suspension Clamp's suitability is improved further by numerous cable diameters to its compatibility, including 8mm to 25mm. It might last to 3 suspenders easily, showing its suitability for aerial cables of every size.

The Adjustable Aluminum Suspension Clamp from Qitian undergoes rigorous testing for quality-checks to avoid any defects before they truly are distributed around clients. Along with Qitian's dedication to criteria which are top-notch we promise the client satisfaction and lasting outcomes.
