Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector Straight Direct Buried Connector Push-fit Design for Tel

  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel manufacture
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector Straight Direct Buried Connector Push-fit Design for Telecom Duct Connectors
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel manufacture
Product description
Construction
Description
Product Name
HDPE Silicon Core Pipe Connector
Material
Body:PP .Seal:NBR
Product Color
Black, white, blue (support custom colors)
Product Size
40/33、50/42
Reference Standard
JT/T496-2004、Q/KL020-2005
Appearance
Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread.
Connection Force
(under tightened state)
40/33mm:≥6700N
Weight(g)
194(40/33mm)
High Temperature Resistance
-40℃~+65℃

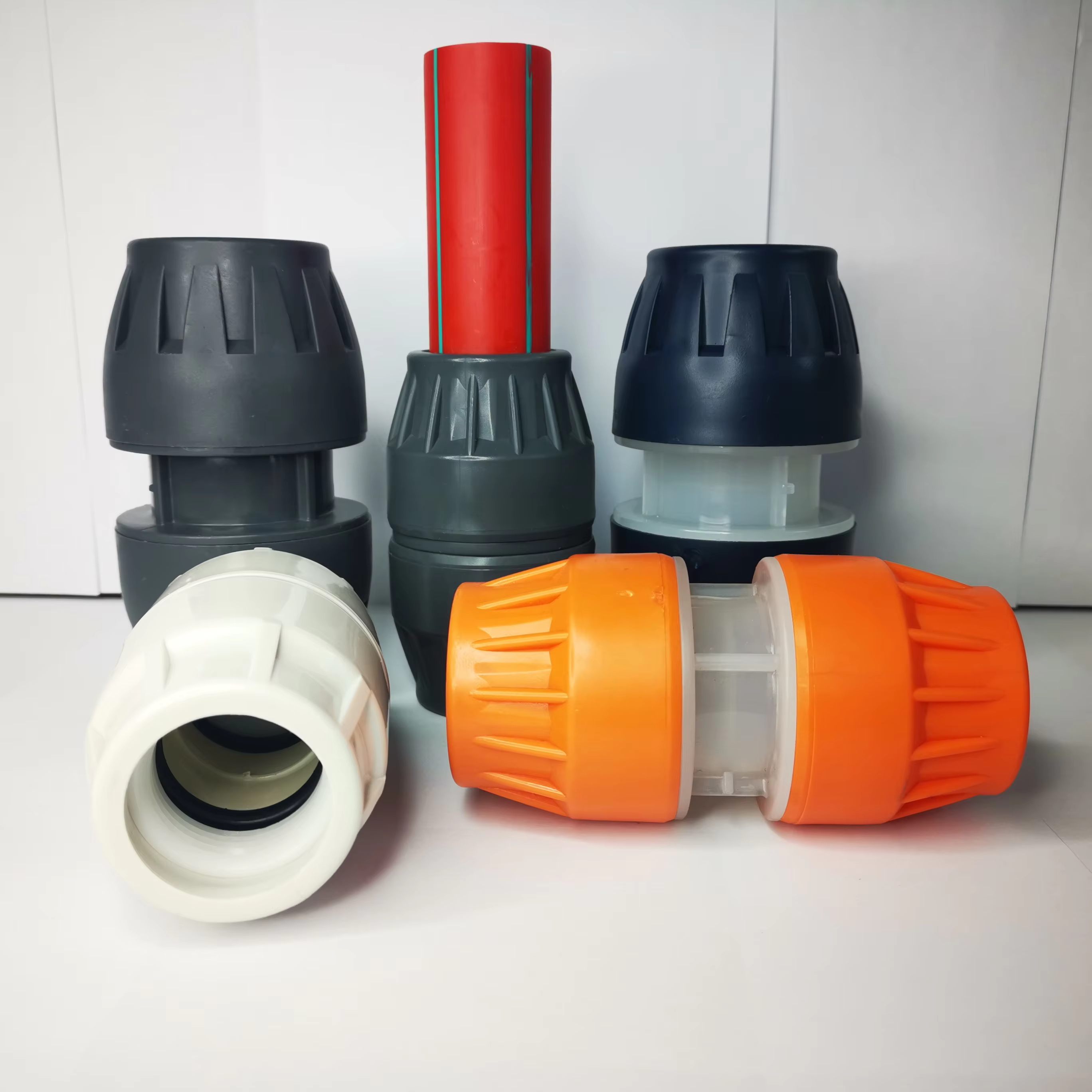

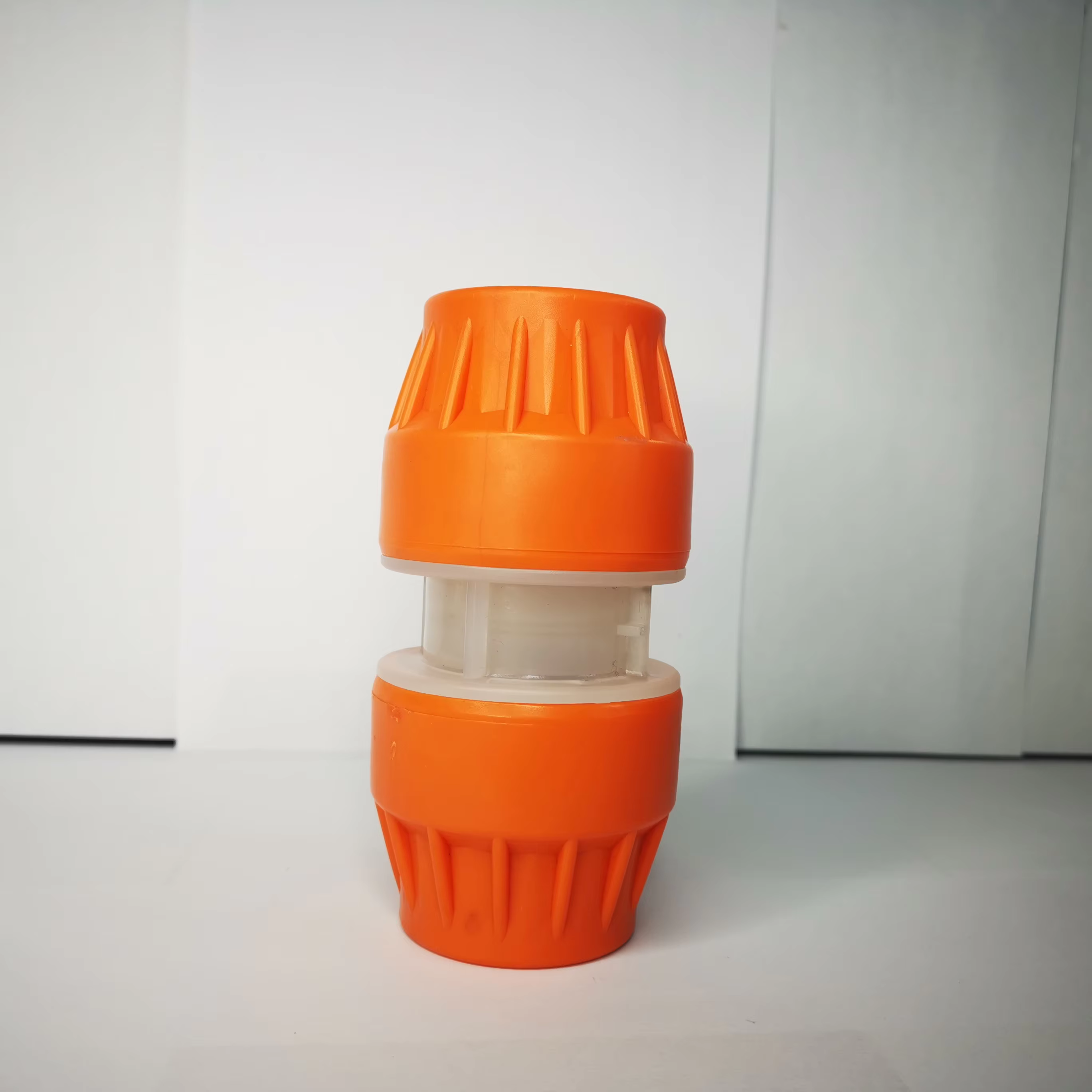

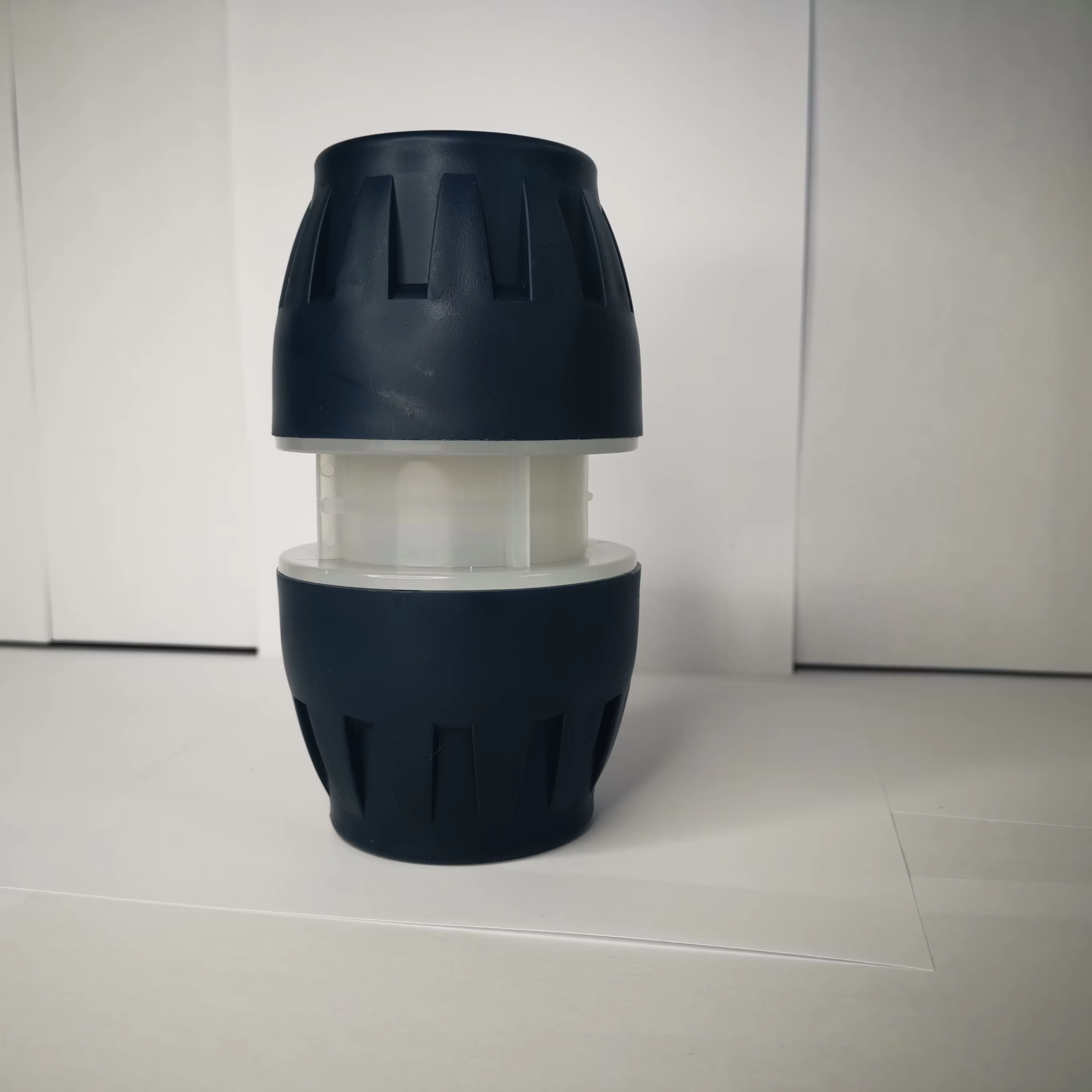

Product Views
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel factory
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel supplier
Features
- Connect two pipes which are the same outer diameter.
- A push-fit design for quick and easy installation.
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel manufacture
Straight Direct Buried connector

Material
.Washer:PUM .Lock Claws:PUM
.Collar: Polyacetal .Sleeve: Polyacetal
Description
.Connect two microducts which are the same outer diameter.
.A push-fit design for quick and easy installation.
High Temperature resistance -40℃--+65℃
.High Pressure resistance >25bar.
IP Rate: IP68

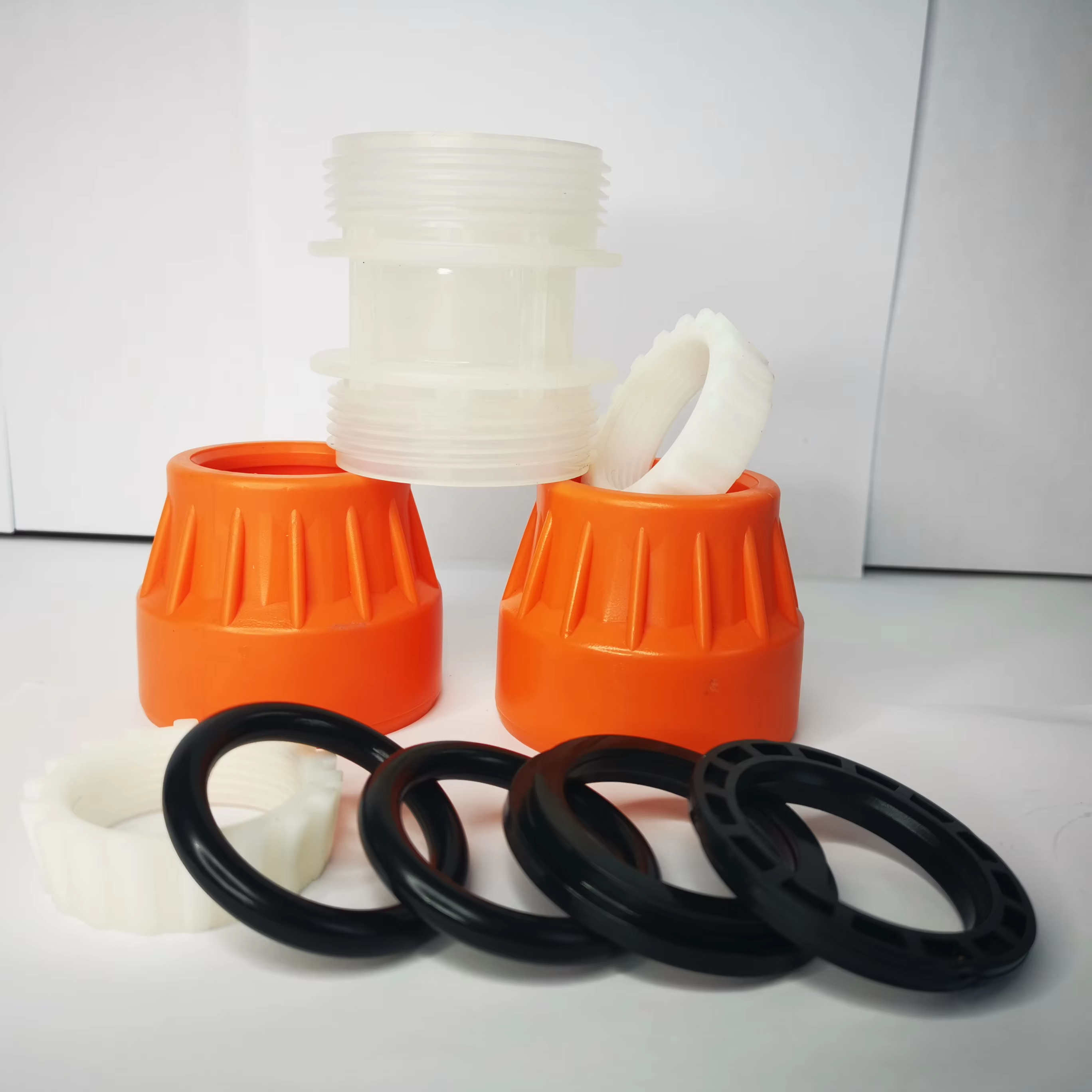

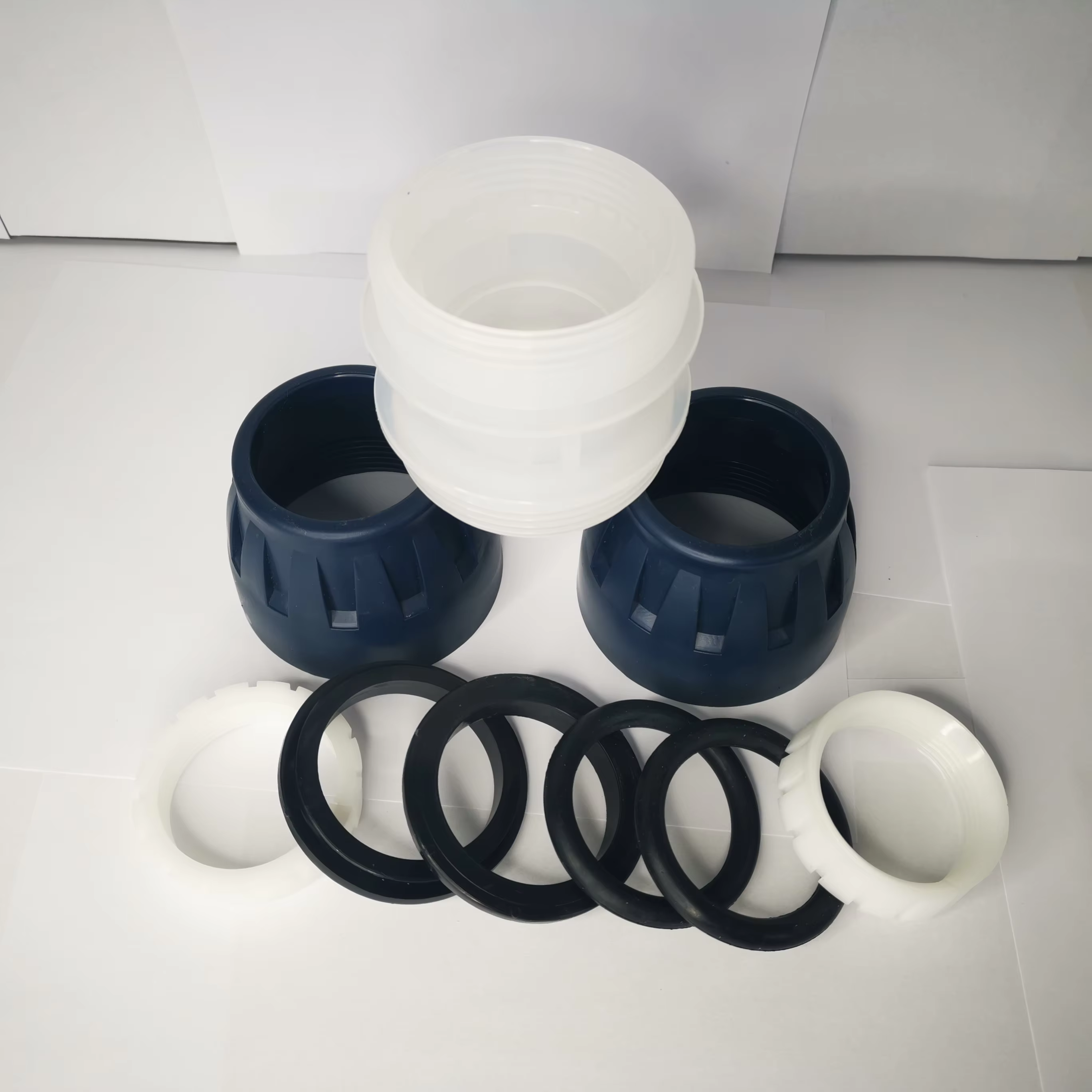

Connection sequence:
End cap,
elastic collar,
gasket,
rubber sealing ring,
connecting screw,
rubber sealing ring,
gasket,
elastic collar,
end cap
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel factory
Installation
- Cut both ends of the silicon core tube flat and clean;
- Assemble the connection in the order of connection;
- Tighten with the special tools provided with this product to ensure that the assembly sequence is correct, and when the tightening is in place
(Note: No need to use after burning tools in the tightening process), the joint sealing performance reaches a good condition)
- The joint can be disassembled and assembled many times. After a long time use, disassemble the joint and reinstall it, please carefully check the effectiveness of the sealing ring . If damage is found, it should be replaced.
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel manufacture
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel factory
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel manufacture
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel details
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel manufacture
Easy Installation HDPE 50mm silicon Pipe Coupler Micro Duct Connector  Straight Direct Buried Connector Push-fit Design for Tel manufacture
FAQ
1.Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service.
HIGH QUALITY KEXING IRRIPLAST PN10 16BAR PE Quick connector plastic injection HDPE PIPES BSP Irrigation Compression Fittings PP
2.Q :How can you ensure the quality?
A : Good question! We are a one-stop manufacturer, We have complete facilities and over-15-years manufacturing experience to ensure product quality. And we have already passed lSO 9001 Quality Management System.
Easy Installation 25/20mm 32/28mm 40/33mm 50/40mm Db Straight Direct Buried Connector Push-fit Design For Hdpe Pipe
3.Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
Union Coupling,HDPE compression fittings,full plastic fittings
4.Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
FCST-FDS-G Series Quick And Easy Installation 32/26mm 40/33mm 50/42mm 60/50m DB Straight Direct Bury Connector For Silicon Pipe
5.Q: Can you do OEM?
A: Yes , we can.

6.Q: What is your payment term ?
A: Payment <= 4000USD,100% in advance. Payment>= 4000USD, 30% TT in advance, balance before
shipment.


7.Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC.

8.Q:Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train.
