Fibre Count | 2 Fibres | 4 Fibres | 6 Fibres | 8 Fibres | 12 Fibres | |||||
Outer Diameter (mm) | 1.15±0.05 | 1.15±0.05 | 1.35±0.05 | 1.50±0.05 | 1.65±0.05 | |||||
Weight(g/m) | 1.0 | 1.0 | 1.3 | 1.8 | 2.2 | |||||
Min Bend radius(mm) | 50 | 50 | 60 | 80 | 80 | |||||
Temperature | Storage：-30℃ ～ +70℃ Operation：-30℃ ～ +70℃ Installation：-5℃ ～ +50℃ | |||||||||
Cable service life (estimate value) | 25 years | |||||||||

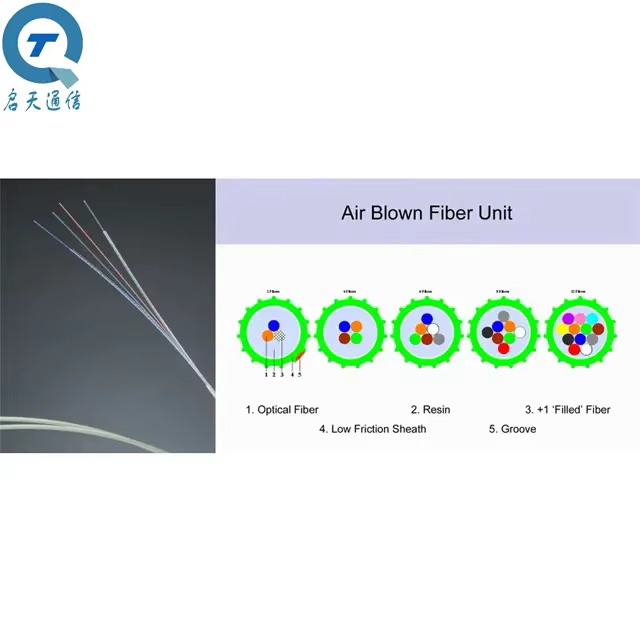

Note: It is recommended that the structure of 2 fibres unit consist of 2 filled fibres, for it is provedthat 2 fibres unit with 2 filled fibres is better than the one with zero or one filled fibre in the blowing performance and the fibre stripping-ability | ||||||||||
Fibre Count | 2 Fibres | 4 Fibres | 6 Fibres | 8 Fibres | 12 Fibres | ||||
Test equipment | PLUMETTAZ：UM25, ERICSSON：F, CATWAY：FBT-1.1 | ||||||||
Standard duct | 5.0/3.5 mm | ||||||||
Pressure | 7bar / 10bar | ||||||||
Typical blowing distance | 500m / 1000 m | 500m / 1000m | 500m / 1000m | 500m / 1000m | 500m / 800m | ||||
Typical blowing time | 10 min/18 min | 10 min18 min | 12 min/ 18 min | 13min/18 min | 15 min /20 min | ||||
Test | Standard | Parameters | Test Results | |||
Tension | EN 18700 A1/501 IEC 60794-1-2-E1 | Load is 1×W | Additional attenuation ≤0.05dB after test | |||
Bend | IEC 60794-1-2--E11A | Diam 40mm×3turns 5 cycles at 20℃ | Additional attenuation ≤0.05dB,after test | |||
Crush | IEC 60794-1-2-E3 | 100 N, 60s | Additional attenuation ≤0.05dB,after test | |||
All optical testing proceeded at 1550 nm | ||||||

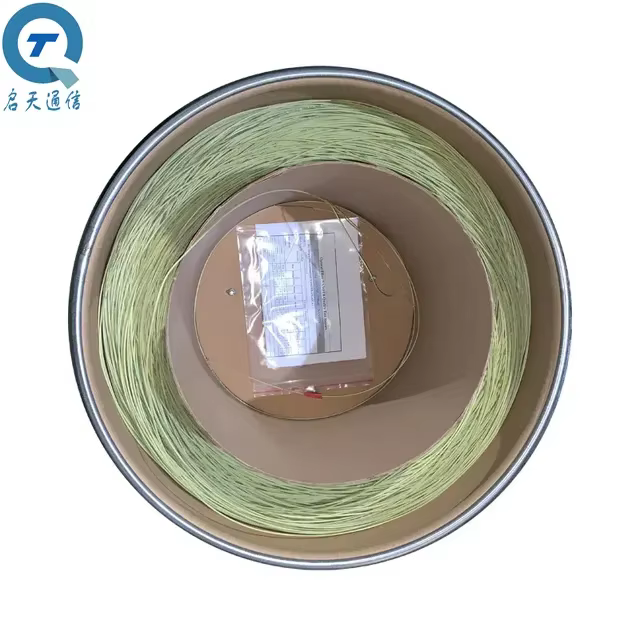

Fibre Count | Length（m） | Pan Size Φ×H(mm) | Weight (Gross) (kg) |
2～4 Fibres | 2000 m | φ510 × 200 | 8.0 |
4000 m | φ510 × 200 | 10.0 | |
6000m | φ510 × 300 | 13.0 | |
6 Fibres | 2000 m | φ510 × 200 | 9.0 |
4000 m | φ510 × 300 | 12.0 | |
8 Fibres | 2000 m | φ510 × 200 | 9.0 |
4000 m | φ510 × 300 | 14.0 | |
12 Fibres | 1000 m | φ510 × 200 | 8.0 |
2000 m | φ510 × 200 | 10.0 | |
3000m | φ510 × 300 | 14.0 | |
4000 m | φ510 × 300 | 15.0 |
