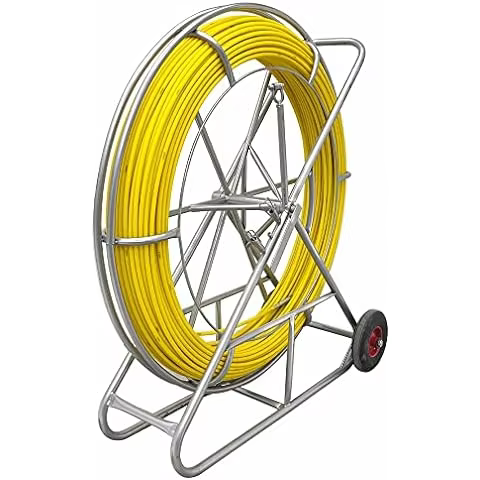

Portable 4mm 150m Fiberglass Duct Rodder Lightweight Underground Cable Tools for Fiber Optic Equipment

  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

Qitian



Launching the remarkable Portable 4mm 150m Fiberglass Duct Rodder Lightweight Underground Cable Tools for Fiber Optic Equipment Qitian. This revolutionary and cable is lightweight underground is a vital equipment for several fiber optic installations.


Qitian's Portable Fiberglass Duct Rodder measures 4mm in diameter and it has a length whopping of meters. It’s built to make cable and cable installments an item of cake, especially in tight or areas being hard-to-reach. The fiberglass construction for this duct rodder guarantees it an option is excellent fieldwork where rate and flexibility are paramount that it's both ultra-lightweight and durable, making.


The thing that makes the Qitian's Portable 4mm 150m Fiberglass Duct Rodder Lightweight Underground Cable Tools for Fiber Optic Equipment therefore unique is merely a range to its compatibility of cable pulling systems. It can be fitted with various accessories such as pulling eyes, rollers, and guides and will traverse terrains and this can be different ease.


The Qitian's Portable 4mm 150m Fiberglass Duct Rodder Lightweight Underground Cable Tools for Fiber Optic Equipment features a rod is non-conductive is perfect for safe insertion into electrical conduits and other hard-to-reach areas. Its pole normally strong sufficient to push or pull cables inside and outside of tight corners or gaps without getting stuck.


Installing and fiber is pulling cables is actually a delicate and high-precision technique, nonetheless it can be made more effective aided by the right tools. The Qitian's Portable 4mm 150m Fiberglass Duct Rodder Lightweight Underground Cable Tools for Fiber Optic Equipment is especially designed for the installation and maintenance of fiber optic cables and ensures that you can perform the task quickly, safely, along with optimal accuracy.





Product Description

Specification
Model Number
Fiberglass Duct Rod
Type
Fiberglass Duct Rod
Place of Origin
GUA
Brand Name
OEM
Use
FTTH
Warranty Time
1 year
Network
None
Product Type
FRP Rod
Line Length
50-200 meter
Rod Diameter:
4mm
Length Of Pulling Rod:
150M-200M

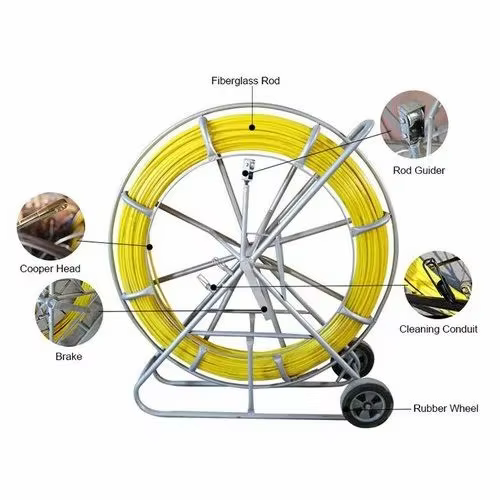

Structure
1. Fiber glass rod inner: Extruded process made of E-fiberglass and high quality resin at high temperature.
2. Fiber glass rod outer: developed polymer
3. Assembly: metal frame powder coated; rubber wheels assembly for easy transportation; Guide rollers for rotary coupling; parking brake for the flexible rod control.
4. Copper wire inside is optional, which is for tracing easily or other professional usage.
5. Rolling bearing cage for mobility is strong and easy to use.
6. Feed device allows rod in and out smoothly

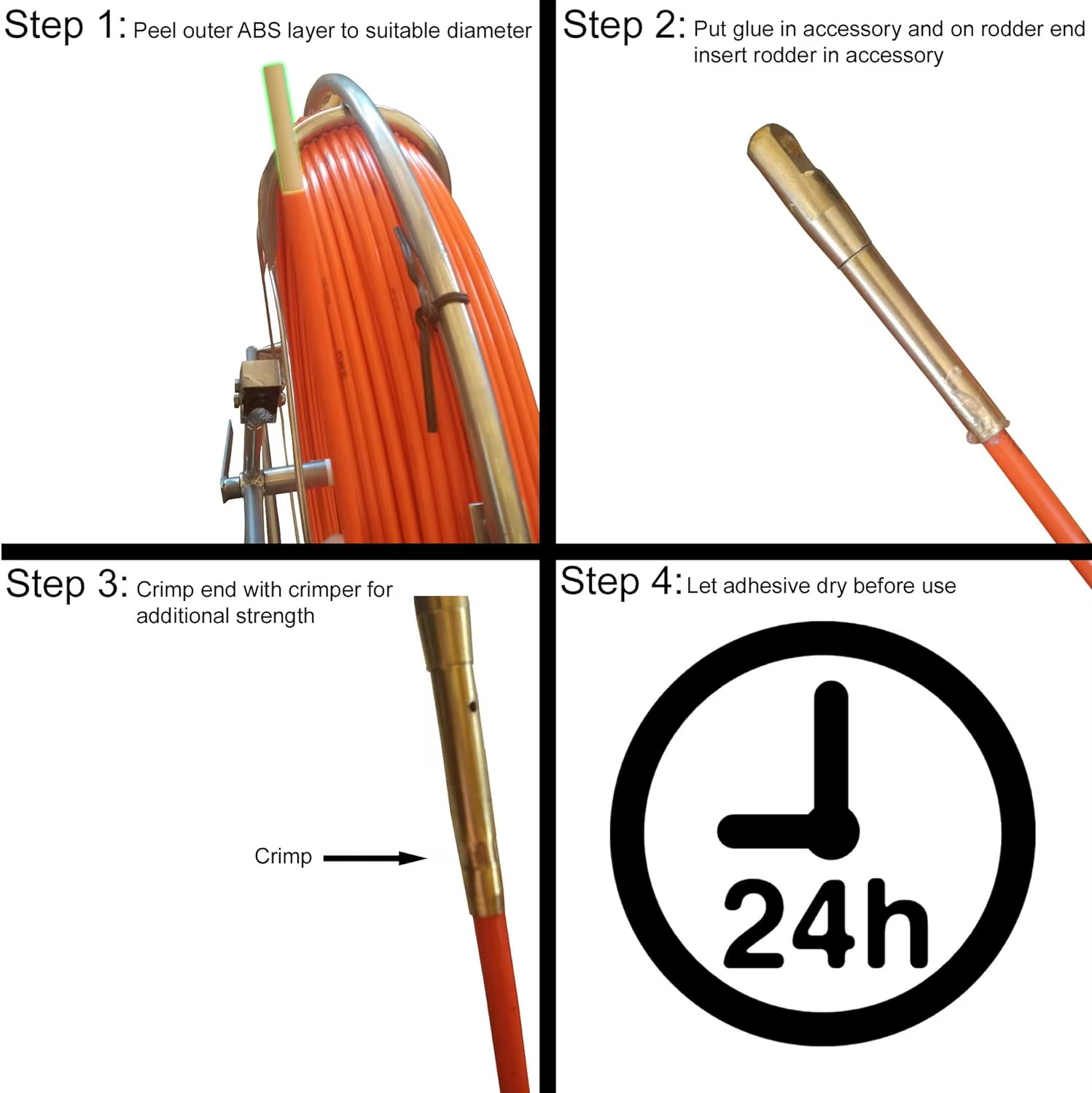

7. Rustproof bull-nose pulling tips with diverse accessories.

Frame and Reel Information
1. Equipped with brake device, the rotating or stopping of the rod can be easily realized just by turning hand. Tilting type
handle, convenient for pushing and pulling.
2. Guide roller and fixed ring: fix the rod end; protect the rod jacket from being scratched.
3. Frame color: yellow, other colors are available.

Main Specification
Cable Duct Rod Rod Diameter:4.5mm, 6mm, 8mm, 9mm,10mm,11mm,12mm,13mm,14mm,16mm,18mmRod Length:10-500mtrsMost popular Size:4.5x70m,
6*100m, 8*150m, 10*150m, 11*250m,12*250m, 14*250m,16*200m, etc.

Specification
Rod Diameter (mm)
Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16


Rod Length (m)
30~500

Frame Spec.(mm)
1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc.

Wheel Diameter(mm)
300mm

Wall thickness of Metal Frame
2.2mm

Color
blue, yellow, red, white etc.
Material
Rod Inner
Extruded by fiber glass and high strength resin at high temperature


Rod Outer
High Density polyethylene coating

Iron Frame
Steel with high-temperature sprayed plastic or Spray coating

Wheel
rubber

Brake
Yes

Drawing head
copper
Physical Characters
Density
55g/m


Working temperature
-40°C to +80°C

Breaking tension
100kg

Bending Radius
295mm

Technology
Pultrusion
Packaging
Inside
plastic woven strip wind around the frame


Outside
Wooden pallet and Wooden box
