Product Description

Characteristics

1. Can be installed without shutting off the power.

2. Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25 kV.

3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props.

4. Large span lengths and the largest span is over 1000 m.

5. Good performance of tensile strength and temperature.

6. The design life span is over 30 years.

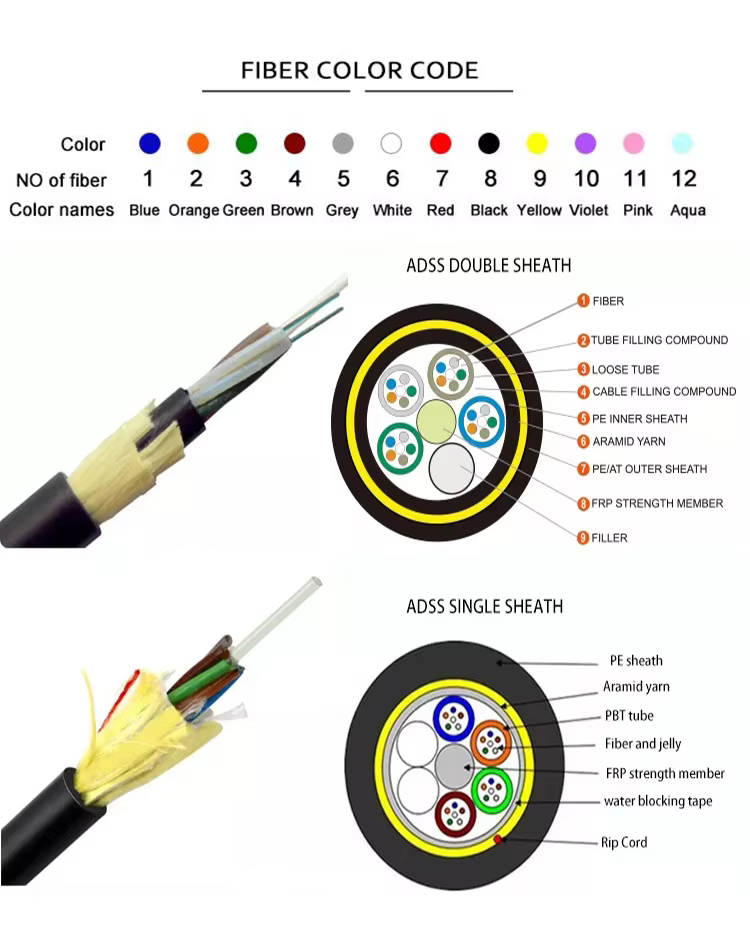

No. of cable					2~8	10~12
Fiber Model					G.652D
Strength Member	Material			FRP
		Diameter（±0.05）mm			0.5
Loose Tube	Material			PBT
		Diameter（±0.06）mm			2.0	2.2
		Thickness（±0.03）mm			0.32	0.35
		The Max. Core NO./Tube			2~8	10~12
Additional Strength Member	Material			Glass Yarn
Outer Sheath	Material			LSZH
		Thickness（±0.2）mm			2.0	2.0
Cable Diameter					5.5	6.0
Cable Weight					39	42
Material					HDPE
Cable Weight					25	27.5
Min. bending radius			Without Tension	10.0×Cable-φ
				Under Maximum Tension	20.0×Cable-φ
Temperature range （℃）			Installation	-20~+60
				Transport & Storage	-40~+70
				Operation	-40~+70

Company Profile

Qitian

Top selling ADSS Outdoor Optical Cable is premium that quality designed focus on particular requirements of modern-day interaction sites. This cable founded fact because of its performance is exemplary and, making this your suggested option for many systems.

The ADSS Outdoor Optical Cable is a fiber that dietary is 2-12 which is perfect for aerial light communication. It boils down with a MOQ of 1km, making certain you can actually enjoy interaction of uninterrupted and never having to stress about any disturbance or loss of indication. This could causes it to be the clear answer is long-distance that obvious well suited for systems, particularly if you are to discover a thing which can be reliable and efficient.

One of the countless features of utilizing the ADSS Outdoor Optical Cable is its power to withstand conditions that could be harsh. The cable is made to withstand temperatures are extreme high winds, and rainfall is hefty it an answer that will be well suited for outdoor communication companies. This cable additionally is sold with a layer of protective product that shields it from harmful UV rays ensuring it may continue for many years.

With Qitian's state through the ADSS Outdoor Optical Cable, you are able to enjoy internet with high-speed, crystal vocals are clear telephone calls, and video streaming is uninterrupted. The cable was built to deliver performance is exceptional providing bandwidth is high low sign loss, rendering it ideal for companies that be determined by fast interaction which may be definitely reliable.

Another feature is excellent with cable is its maintenance is its low requirement. The ADSS Outdoor Optical Cable was created to operate flawlessly without needing any upkeep unlike other interaction cables that want regular upkeep. This not simply helps you save the expenses linked to upkeep but additionally signifies that your conversation network is undoubtedly all set.
